현상기

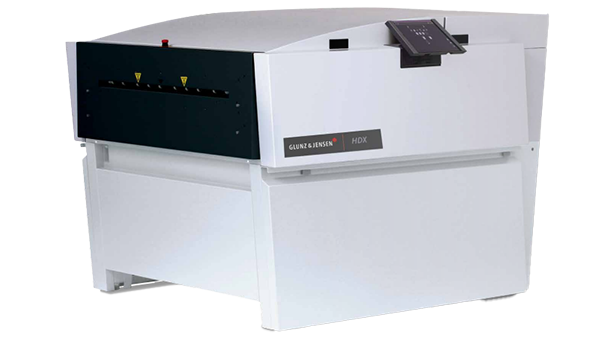

GLUNZ & JENSEN Processor
HDX
Specification
| 85 | 125 | 165 | |
|---|---|---|---|
| Plate types |
Presensitized single-sided positive or negative offset plates. CTP plates. For information on chemicals and processing materials please contact your supplier. |
||
| Plate width (min. - max.) |
200 - 850 mm (7.9 - 33.5”) |
200 - 1250 mm (7.9 - 49.2”) |
200 - 1650 mm (7.9 - 65”) |
| Plate length (min.) |
285 mm (11.2”) |
||
| Plate thickness (min. - max.) |
0.15 - 0.40 mm (0.006 - 0.016”) |
||
| Plate speed (min. - max.) |
40 - 220 cm/min. (15.7 - 86.6”/min.) |
40 - 180 cm/min. (15.7 - 70.9”/min.) |
40 - 220 cm/min. (15.7 - 86.6”/min.) |
| Brush speed (Developer Wash) |
40 - 130 rpm 40 - 130 rpm |
||
Tank capacities
| 85 | 125 | 165 | |
|---|---|---|---|
| Developer | 54 | (14 US gal.) | 79 | (20.9 US gal.) | 99 | (26.2 US gal.) |
| Wash | 54 | (14 US gal.) | 20.5 | (5.4 US gal.) | 26.5 | (7 US gal.) |
| Gum (optional double-gum) | 54 | (14 US gal.) | 4.2 | (1.1 US gal.) | 9 | (2.4 US gal.) |
