Autoloader

Automatic Plate Feeder

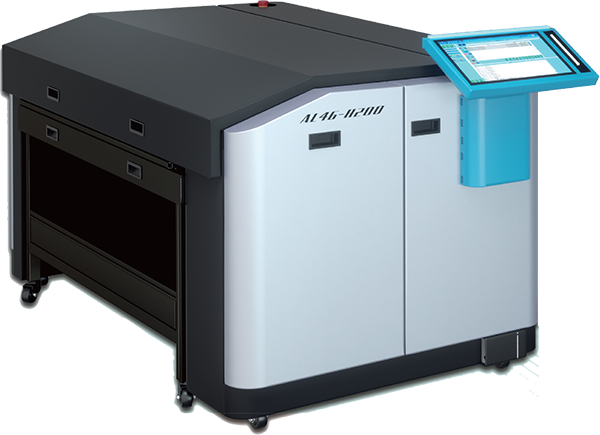

Single-plate Cassette

AL-46-H200
Automatic Plate Feeder

Specification
Model	AL46- H200	AL60- 100 (H)	AL72-100 (H)
Cassettes	1	1	1
Max. plate storage per cassette	200	100	100
Max. plate storage	200	100	100
Air pressure	<-25 kPa, -30 kPa, -40 kPa	<-20 kPa、-25 kPa、30 kPa
Air pressure	-60±2 kPa	-70±2 kPa
Air pressure	/	0.3 MPa
Max. plate size	1163 × 940	1860 × 1422	1860 × 1422
Min. plate size	370 × 370	650 × 550	650 × 550
Dimenions (W×L×H)	1930 × 1170 × 1150	2640 × 1500 × 930	2640 × 1500 × 930
Net weight	580 kg	770 kg	770 kg

* Remarks：CRON reserves the rights to modify or change the design and technical parameters without notifying in advance
