Autoloader

Automatic Plate Feeder

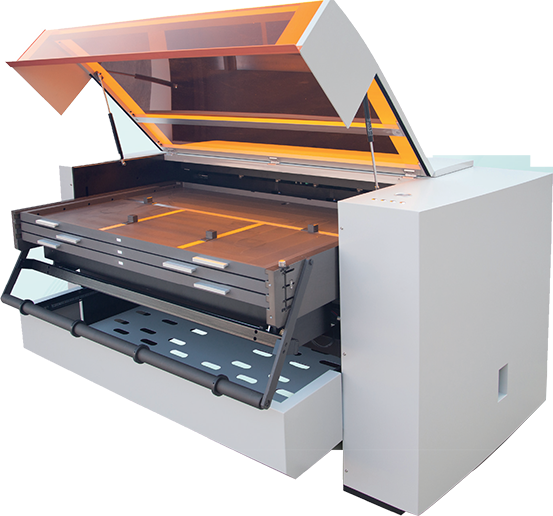

The 3/5-Cassettes

3 Cassettes
Automatic Plate Feeder

Specification
Model	AL26- 50M3 (H)	AL36- 50M3 (H)	AL46- 50M3L (H)	AL46- 50M5L (H)
Cassettes	3	3	3	5
Max. plate storage per cassette	50	50	50	50
Max. plate storage	150	150	150	250
Air pressure	<-20 kPa、-25 kPa、30 kPa		<-20 kPa、-25 kPa、30 kPa
Air pressure	-70±2 kPa		-70±2 kPa
Air pressure	0.3 MPa		0.3 MPa
Max. plate size	670 × 570	925 × 675	1163 × 940	1163 × 940
Min. plate size	240 × 240	240 × 240	280 × 280	280 × 280
Dimenions (W×L×H)	1360 × 1100 × 1040	1600 × 1200 × 1100	1850 × 1225 × 1100	1850 × 1225 × 1100
Net weight	1860kg	600kg	670kg	770kg

* Remarks：CRON reserves the rights to modify or change the design and technical parameters without notifying in advance
